Thermowells

Thermowells

Standard and Custom, Barstock and Fabricated

Barstock thermowells in brass and stainless steel, seven lengths

3 mlongest fabricated well

Thermowells are precision machined metallic and non-metallic housings used to protect temperature sensing devices like thermocouples, thermistors and bimetal thermometers from harsh process conditions such as excessive pressure, high velocity flow and corrosion. They increase the longevity of the sensor, allow sensor replacement without interrupting the process, and reduce the chances of contamination.

Thermowells designed for high pressure applications are typically machined from bar stock to ensure integrity. Smaller thermowells for use in low pressure environments may be constructed from tubing with one end welded closed.

Specification

Material
316SS, 304SS, 446SS, brass, Monel, Inconel, Hastelloy, CS, cupronickel, F11, F22 and other alloys, PTFE and other polymers
Length
Bar stock up to 1 m, two-piece up to 2 m, fabricated up to 3 m
Bore size
0.260 in, 0.385 in, custom
End connection
BSP, BSPT, NPT, UNF, NF, NPSM, SW, compression fitted
Process connection
Flanged, threaded
Design
Straight shank, stepped shank, tapered shank, limited space, sanitary type

Drawing

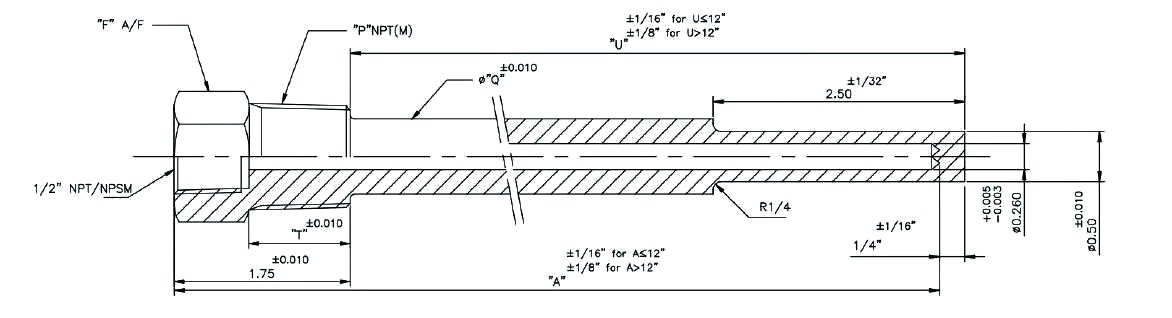

Dimensioned drawing of a standard stepped shank thermowell
Dimensioned drawing of a standard stepped shank thermowell

More Views

Stainless steel barstock thermowells in four lengths
Two brass barstock thermowells

Build the Part Number

Set the six positions and the code assembles as you go. Lengths are machined to order, so drag them to the size you need. Send us the code, or send us the dimensions and we will write it for you.

ATTW

TYP Shank Type

A.0 6.0″

U.0 4.5″

Held 1.5″ under the stem length.

ID Bore

MAT Material

PRC Process Connection

Ordering Guide

Standard stepped shank thermowell

ATTW-TYP-A.0-U.0-ID-MAT-PRC

TYP
STP for stepped shank, STS for straight shank, TPS for tapered shank
A.0
Stem length: 2.5″, 4.0″, 6.0″, 7.5″, 9.0″, 12.0″ and so on
U.0
Insertion length: 1.75″, 2.5″, 4.5″, 6.0″, 7.5″, 10.5″ and so on
ID
Bore: 0.260″ or 0.385″
MAT
304 for 304/L SS, 316 for 316/L SS, BRS for brass
PRC
08 for 1⁄2″ NPT, 12 for 3⁄4″ NPT, 16 for 1″ NPT process connection

How We Make It

  • Our stainless steel thermowells are made with material sourced directly from the mill, with traceability.
  • We use dual certified stainless steel: 304/304L SS and 316/316L SS.
  • We offer thermowells in material conforming to NACE MR0175/103.
  • We hold CRN registration for our standard thermowells in Canada.
  • All our thermowells are subjected to a hydrostatic pressure test before dispatch.
  • All male threads are cut on CNC turning centres and held to a standard tolerance.
  • We offer thermowells to special surface roughness and tolerance requirements on the stem diameter.
  • Custom and logo markings are done on our laser marking machine.
  • We stock standard thermowell materials for a faster turnaround.
  • Thermowells can be supplied with a plug and chain.
