The Catalogue

Everything We Make

32 products across 4 divisions, with 104 standard part numbers published between them. Everything here is machined to order, so sizes, threads and materials outside the tables are the normal case.

Search Every Part Number

Thermowells

Precision machined housings that protect a temperature sensor from process pressure, high velocity flow and corrosion, and let the sensor be replaced without interrupting the process.

1 product

Barstock thermowells in brass and stainless steel, seven lengths Thermowells Standard and Custom, Barstock and Fabricated Thermowells

Parts & Accessories for Thermocouples and Temperature Sensors

The fixing, sealing and terminating hardware around a thermocouple or RTD: weld fittings, spring loaded fittings, plugs, bayonet hardware, transition fittings, tubes, housings and connector parts.

18 products · 104 part numbers

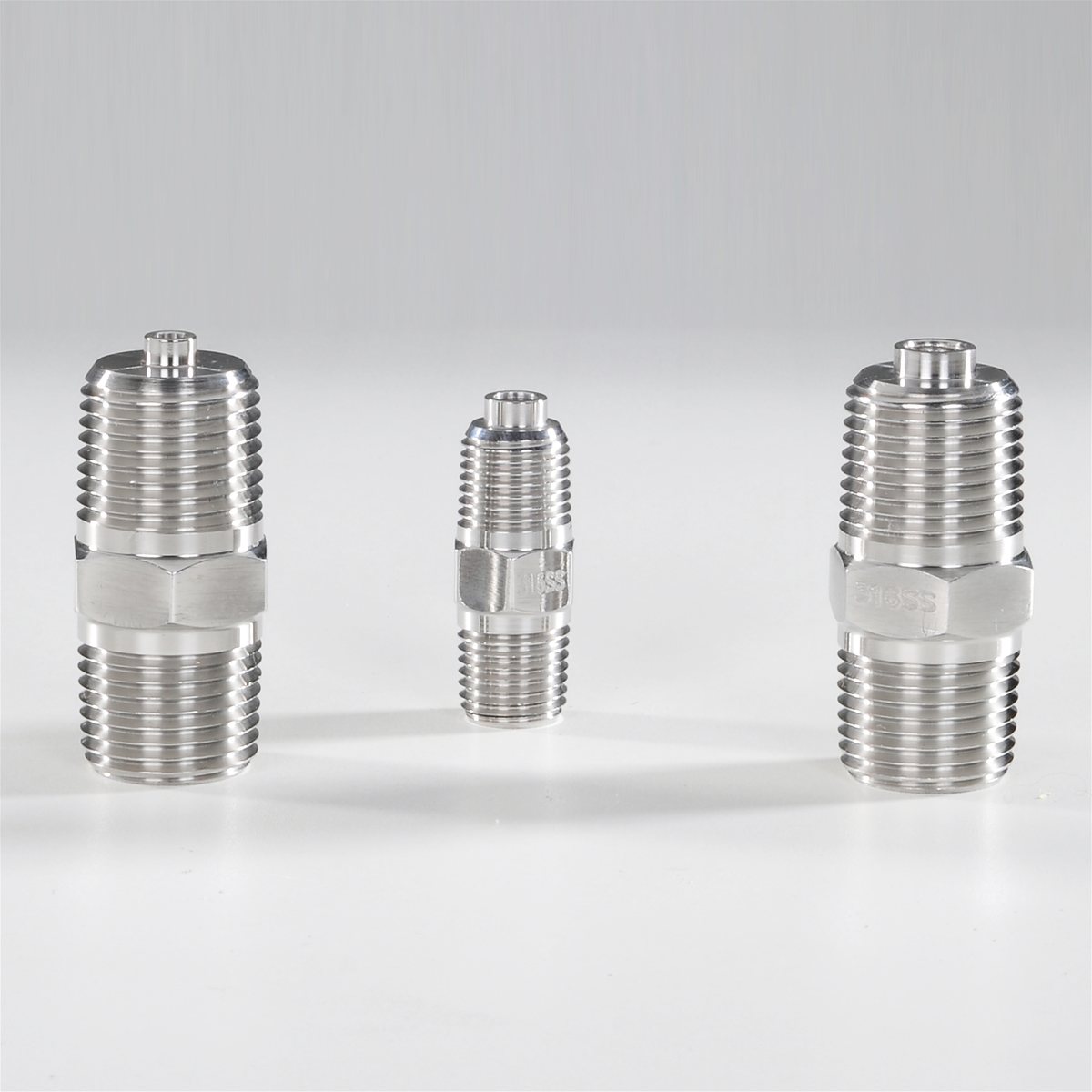

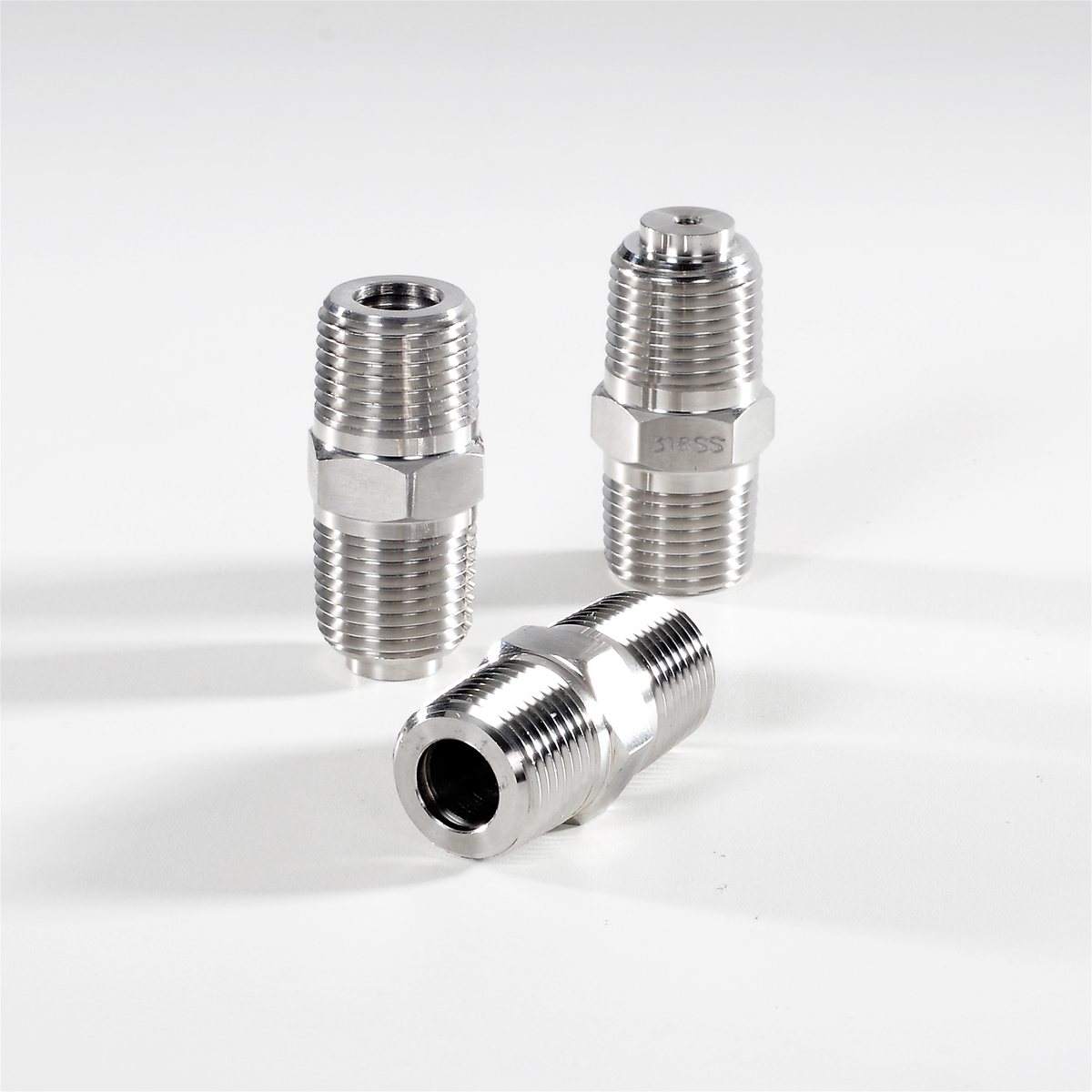

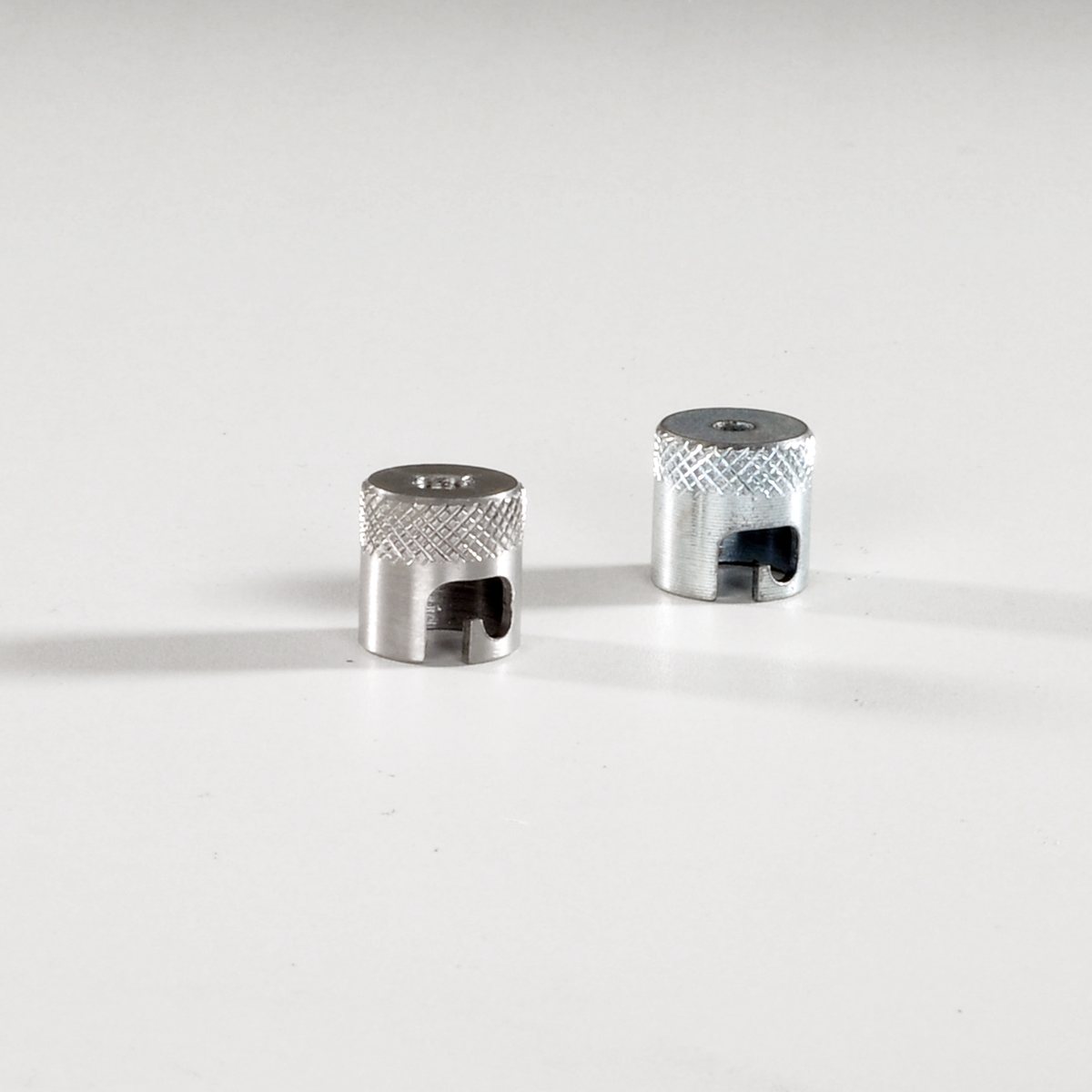

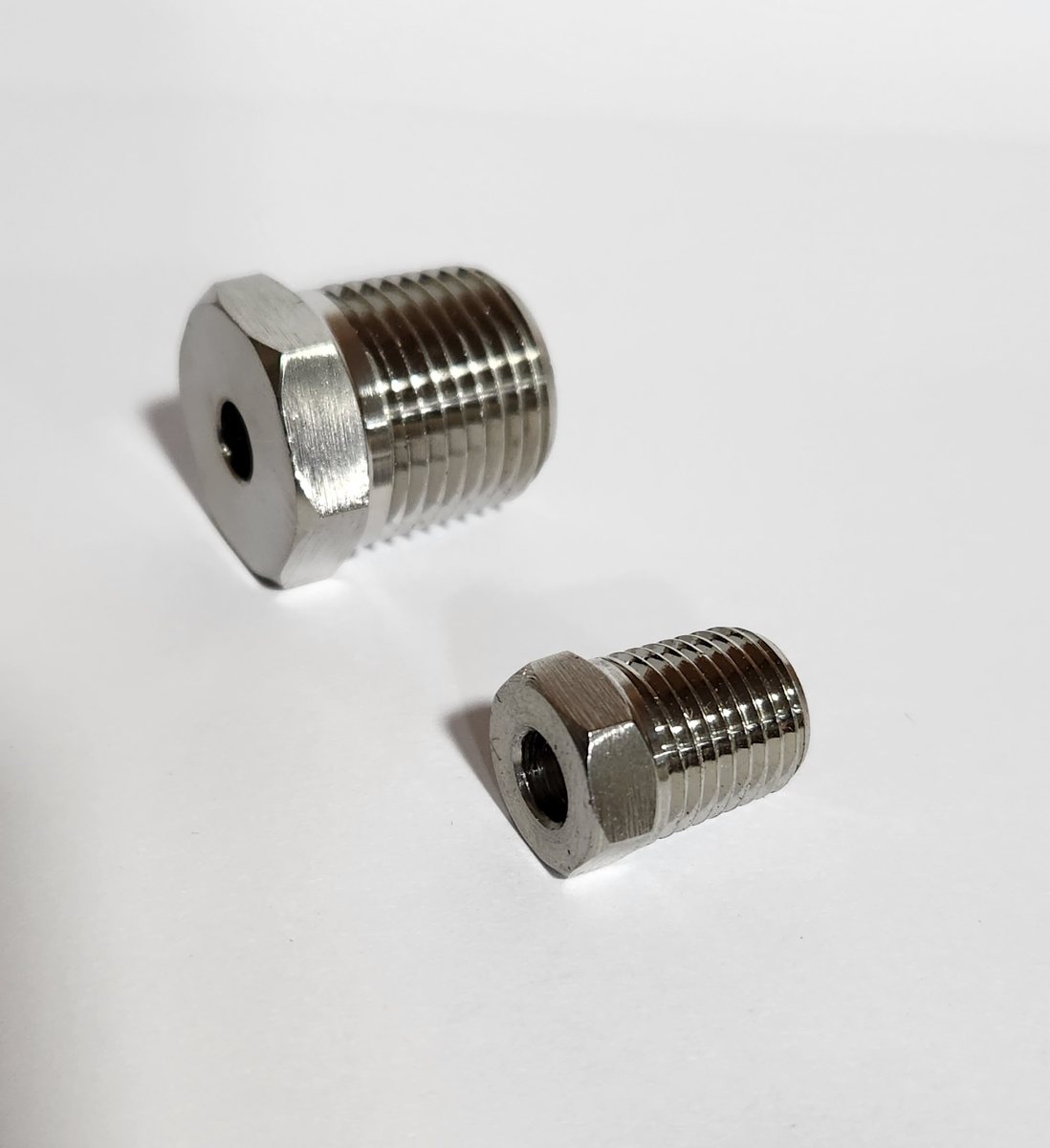

Three stainless steel hex weld fittings, threaded both ends Hex Weld Fittings Double Threaded, with a Weld Lip for the Probe 7 part numbers Three spring loaded hex weld fittings in stainless steel Spring Loaded Hex Weld Fittings Seats the Sensor without a Connection Head 8 part numbers Oil seal spring loaded fitting with its rubber seal ring Oil Seal Spring Loaded Fittings A Movable Liquid Seal, Used on Bearings 2 part numbers Two stainless steel potting plugs with hex heads Potting / Braze Plugs Closes the Sensor Entry After Potting or Brazing 8 part numbers Three stainless steel meltbolts of different lengths Meltbolts For Melt Pressure Transducers in Molten Service 4 part numbers Bore-thru male connectors in stainless steel across the size range Compression Fittings Bore-thru, Single and Double Ferrule 21 part numbers Four bayonet adaptors in stainless and plated finishes Bayonet Adaptors The Male Half of a Quick Release Sensor Mount 10 part numbers Two knurled bayonet caps showing the J-slot Bayonet Caps The J-slot Female Half That Locks the Sensor Down 6 part numbers Bell springs in spring steel Bell Springs Standard 8 in and 12 in, Spring Steel or Stainless Sensor Parts Six threaded transition fittings in stainless steel Transition Fittings Potted Joint from Sheath to Insulated Wire 16 part numbers Three strain relief springs over transition bodies Strain Relief Springs Protects the Lead Wire Exit from Flex Fatigue 4 part numbers Closed end tubes in six diameters and lengths Closed End Tubes Spun-closed, Welded, Polished, 100% Pressure Tested Sensor Parts Meat probe housings with pointed tips Meat Probes Food Service Probe Housings, Made to Your Sizes Sensor Parts Two stainless steel weld pads with a slot for the probe Weld Pads Welds the Sensor Straight onto the Pipe Sensor Parts A machined stainless steel thermocouple head with a screwed cap Probe Housings Barstock, Fabricated, Flanged, Micro and Plastic Sensor Parts Wire clamp brackets for standard connectors, with their screws Wire Clamp Brackets Strain Relief onto Standard and Miniature Connectors 2 part numbers Brass crimp inserts for standard and miniature connectors Crimp Inserts Brass, Held to 0.1 Mm on the Cable OD 6 part numbers A compression tube adaptor shown as bracket, fitting and ferrule Compression Tube Adaptors Mounts a Connector on MI Cable, Reusable 10 part numbers

Instrumentation & Control Accessories

Valves, manifolds and gauge protection for process control, flow control and instrument isolation, machined for hazardous and corrosive service.

11 products · 21 part numbers

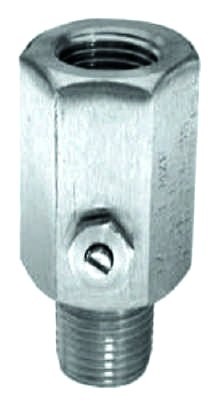

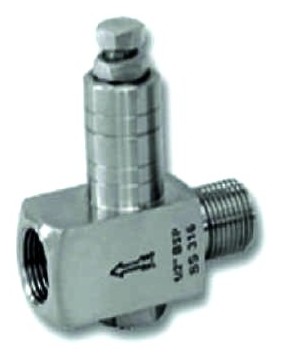

Stainless steel needle valve with a blue tee-bar handle Needle Valves Rated to 15,000 Psi, 1/8 in to 2 In Instrumentation Two-valve manifold with blue and yellow tee-bar handles Manifold Valves 2, 3 and 5 Valve, to 6,000 Psi Instrumentation Two gauge cocks with black lever handles Gauge Cocks Isolates the Gauge for Inspection Under Pulsation Instrumentation Pressure gauge snubber with a hex body Pressure Gauge Snubbers Porous and Adjustable, Mesh Matched to the Medium Instrumentation Pigtail and U-form pressure gauge siphons Pressure Gauge Siphons Pigtail, Q, U and L, Pipe or Bar Stock Instrumentation Air header with six distribution ports Air Headers Replaces Several Valve Assemblies with One Header Instrumentation Stainless steel gauge saver with its arrow marking Gauge Savers Over-pressure Protection Ahead of the Gauge Instrumentation Condensate pot with a red protective coating Condensate Pots A Barrier Between the Steam Main and the Instrument Instrumentation Two machined flush rings Flush / Bleed Rings A Spacer Between Flanges That Allows Drainage Instrumentation Orifice plate assembly with flanges, bolts and gaskets Orifice Plates & Assemblies Primary Elements for Pipeline Flow Measurement Instrumentation Bore-thru male connectors in stainless steel across the size range Compression Fittings Bore-thru, Single and Double Ferrule 21 part numbers

Precision Turned Components & Custom Built Parts

Components made to your drawing: CNC turned parts, sheet metal and stamped parts, and investment castings for complex and intricate shapes.

3 products

Precision turned components in stainless steel Precision Turned Components CNC Turned to Your Drawing, Any Thread Custom Parts A pressed cover, gasket, clamp and bracket set Sheet Metal Components Stamped Parts, Plated, Polished or Coated Custom Parts Investment cast components, as cast Investment Casting Components Complex Shapes with Minimal Subsequent Machining Custom Parts

Send Us Your Drawing

Material, connection, pressure rating and quantity. That is all we need to quote.
