Sensor Parts
Spring Loaded Hex Weld Fittings
Seats the Sensor without a Connection Head
4probe sizes, 1/8 to 3/8 in
Spring loaded fittings are used to install sensors in a thermowell without the use of a connection head, and without worrying whether the sensor is over-inserted or under-inserted into the thermowell bore. They are usually double threaded and come with the weld lip to weld on the sensor probe.
Specification
- Material
- Dual certified 304/304L SS and 316/316L SS
- Thread
- 1/2 in x 1/2 in NPT
- Probe OD
- 1/8 in, 3/16 in, 1/4 in, 3/8 in
More Views
Part Numbers
8 standard part numbers, exactly as printed in our catalogue.
| Part No. | Description | Probe OD |
|---|---|---|
| AT-SLF-MAT-08-02 | 1/2 in x 1/2 in NPT | 1/8 in |
| AT-SLF-MAT-08-03 | 1/2 in x 1/2 in NPT | 3/16 in |
| AT-SLF-MAT-08-04 | 1/2 in x 1/2 in NPT | 1/4 in |
| AT-SLF-MAT-08-06 | 1/2 in x 1/2 in NPT | 3/8 in |
MAT = 304 for 304SS, 316 for 316SS

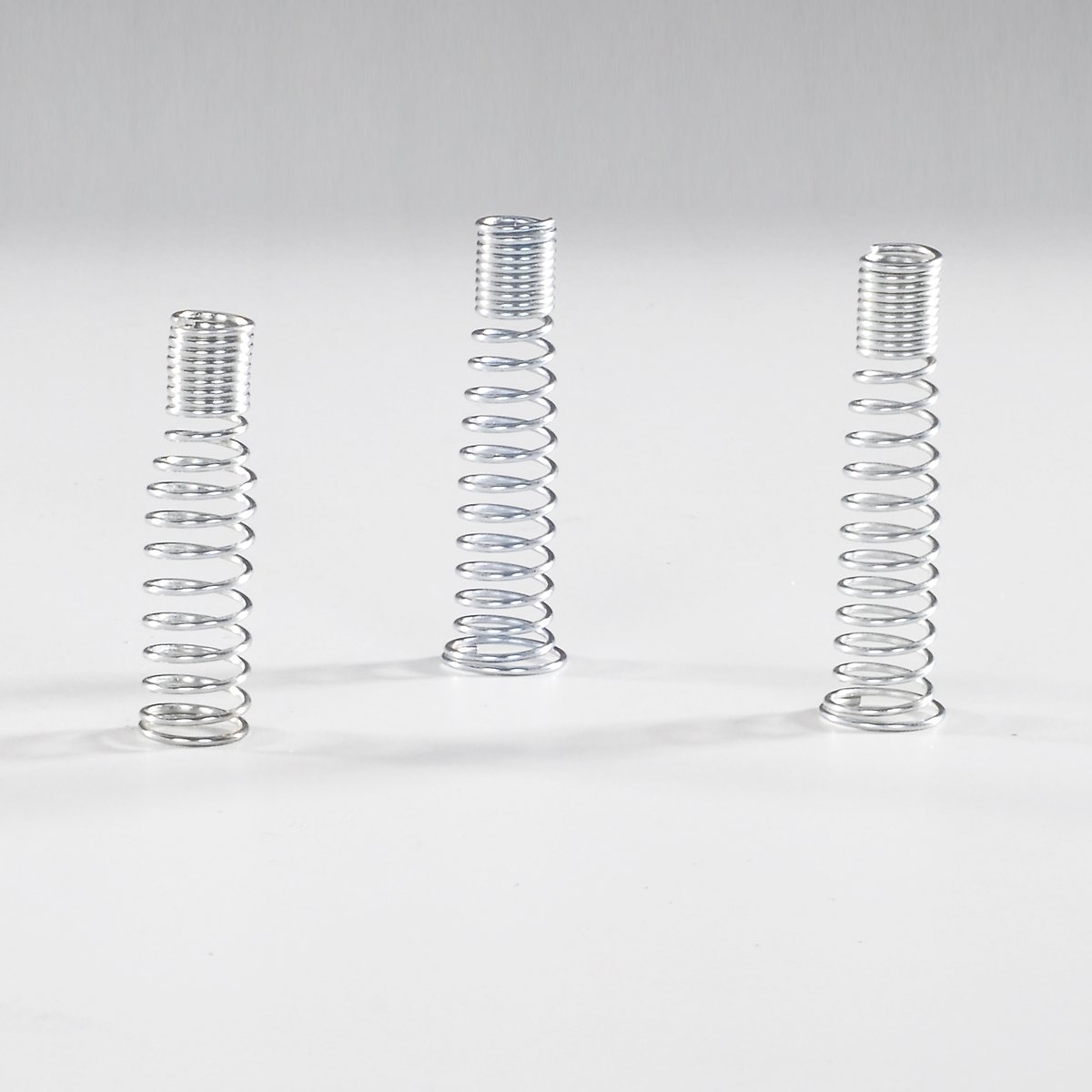

| Part No. | Material | Probe OD |
|---|---|---|
| AT-SLS-S-02 | Spring steel, zinc plated | 1/8 in |
| AT-SLS-S-03 | Spring steel, zinc plated | 3/16 in |
| AT-SLS-S-04 | Spring steel, zinc plated | 1/4 in |
| AT-SLS-S-06 | Spring steel, zinc plated | 3/8 in |
Springs are also available in stainless steel on request.
Available on Request
- Custom spring load hex fittings in other bore sizes and thread configurations.
- Spring load hex fittings in other materials.
