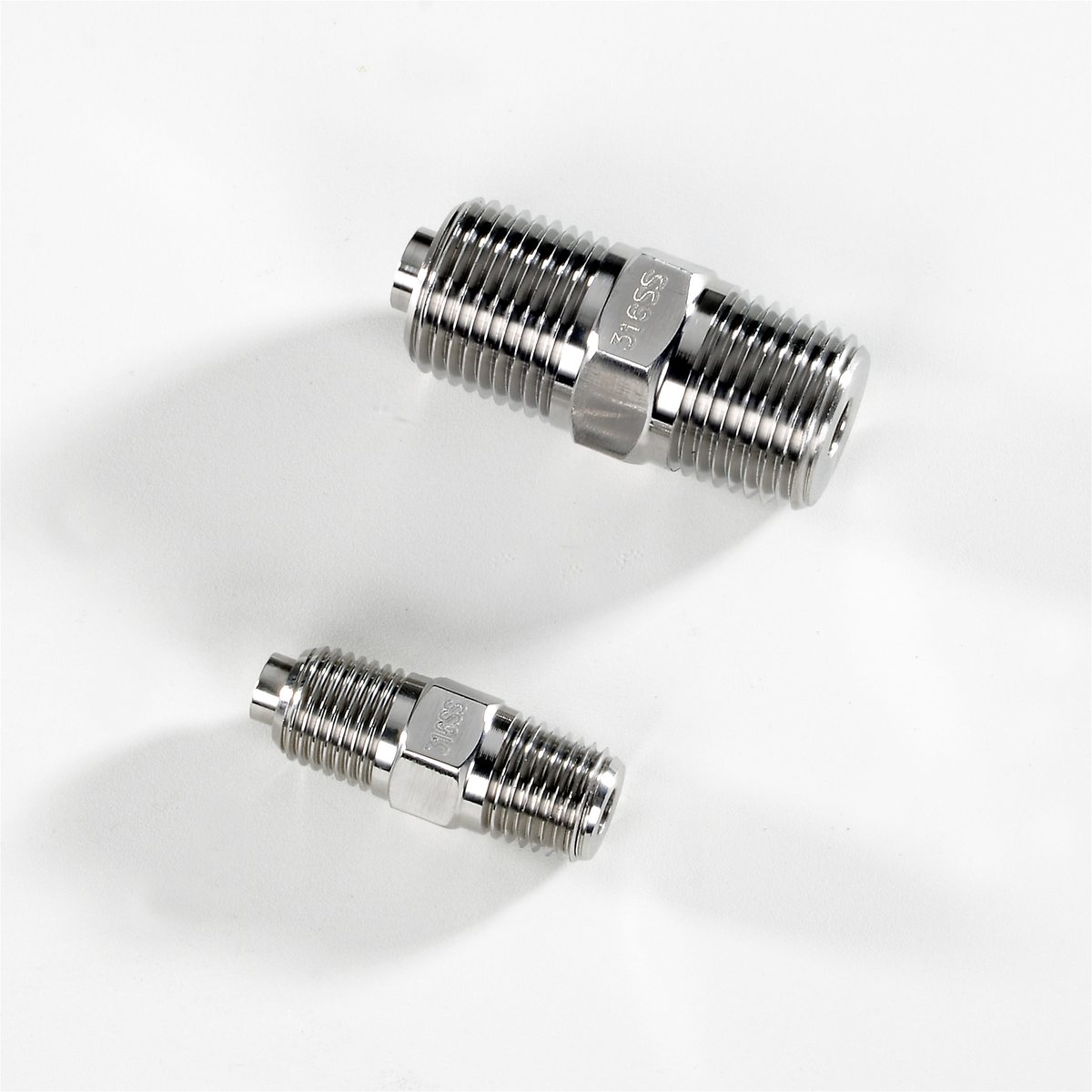

Hex Weld Fittings
Double Threaded, with a Weld Lip for the Probe
7standard part numbers
We offer hex weld fittings for applications where a connection head and a process connection are required. They are usually double threaded and come with a weld lip to weld on the sensor probe.
Specification
- Material
- Dual certified 304/304L SS and 316/316L SS
- Thread
- 1/4 in x 1/4 in NPT, 1/2 in x 1/2 in NPT
- Probe OD
- 1/8 in, 3/16 in, 1/4 in, 3/8 in
More Views
Part Numbers
7 standard part numbers, exactly as printed in our catalogue.
| Part No. | Description | Probe OD |
|---|---|---|
| AT-HXN-MAT-08-02 | 1/2 in x 1/2 in NPT | 1/8 in |
| AT-HXN-MAT-08-03 | 1/2 in x 1/2 in NPT | 3/16 in |
| AT-HXN-MAT-08-04 | 1/2 in x 1/2 in NPT | 1/4 in |
| AT-HXN-MAT-08-06 | 1/2 in x 1/2 in NPT | 3/8 in |
| AT-HXN-MAT-04-02 | 1/4 in x 1/4 in NPT | 1/8 in |
| AT-HXN-MAT-04-03 | 1/4 in x 1/4 in NPT | 3/16 in |
| AT-HXN-MAT-04-04 | 1/4 in x 1/4 in NPT | 1/4 in |
MAT = 304 for 304SS, 316 for 316SS
How We Make It
- All threads are cut on CNC turning centres and held to a standard tolerance.
- All bores are reamed to ensure accurate sizes.
Available on Request
- Custom hex weld fittings in other bore sizes and thread configurations.
- Hex weld fittings in other materials.
